outer protective tape for pipelines

outer protective tape for pipelines

    Unit Price: 2.2~10.3 USD
    Payment Type: T/T,L/C,Western Union
    Terms of Trade: FOB
    Min. Order: 200 ROLLS
    Delivery Time: 7 Days

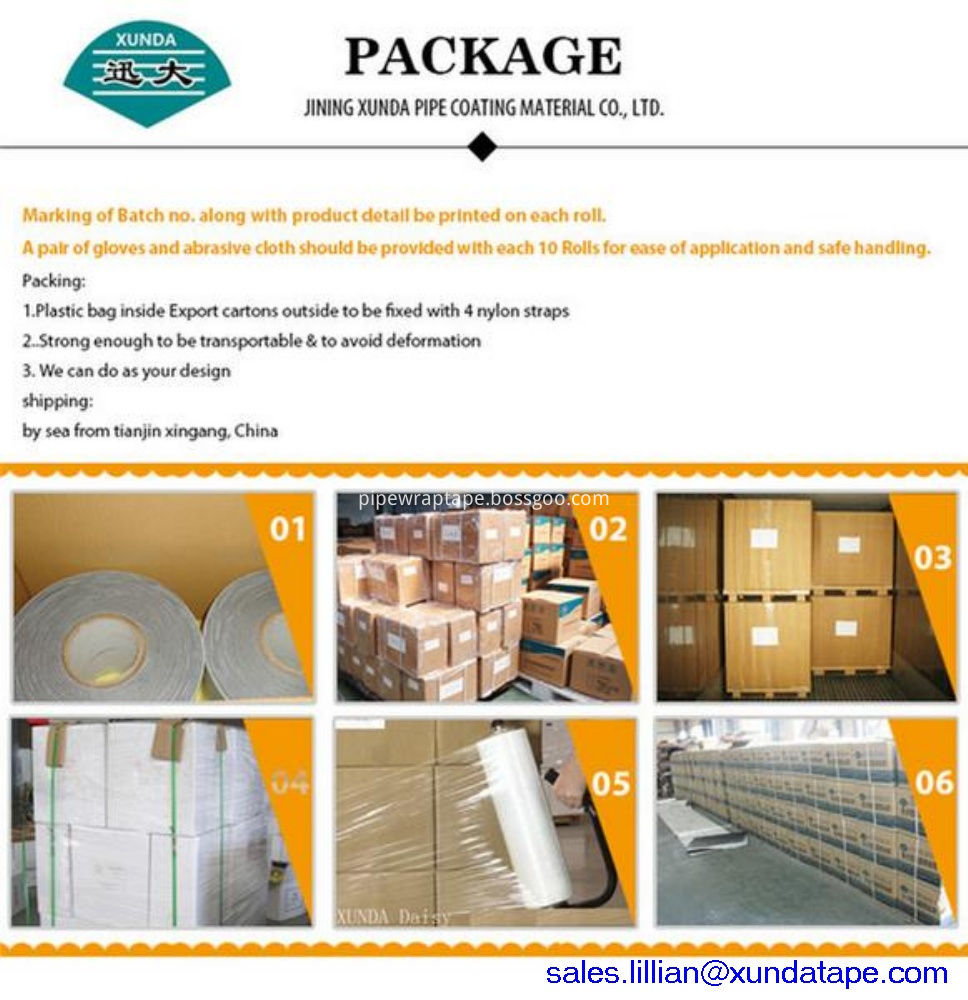

    Packaging: Packing in carton
    Productivity: 300 MTS/month
    Brand: XUNDA
    Transportation: Ocean,Land,Air
    Place of Origin: China
    Supply Ability: 50000MTS/year
    Certificate: ISO9001,SGS

Basic Info

Model No.: T200

Product Description

1.Brand : XUNDA brand

2.Material: Polydethyelne and butyl rubber

3. Thickness: 15 mils to 40 mils

4. Width: 50 mm to 1000 mm

5.Length:10 m to 1800 meter

6.Main Customer:BGSL,SSGC,NIGC and so on

7.Industry Experience: more than 13 years

8.Biggest manufacture in China

9.proportion of exportation:more than 67%

10. Production ability: 10-15 ton per day

11.Accept OEM


anticorrosion pipe wrap tape842



Technical Data Sheet

Type

T238-15

T250-20

T265-25

T275-30

Total thickness

0.381mm

0.510mm

0.650mm

0.770mm

Polyethylene Film

0.251mm

0.380mm

0.510mm

0.620mm

Butyl Rubber Adhesive

0.130mm

0.130mm

0.140mm

0.150mm

Elongation at break

550%

587%

605%

620%

Tensile Strength

56.3 N/cm

68.8 N/cm

72.2 N/cm

75.0 N/cm

Yield Strength

35.2 N/cm

43.0 N/cm

45.0 N/cm

50.0 N/cm

Adhesion to backing at

5.0 N/cm

5.0 N/cm

5.0 N/cm

5.1 N/cm

Dielectric Strength

34.0 KV

36.0 KV

38.5KV

40.0 KV

Impact resistance

5.5 Nm

Cathodic Disbondment

6.4mm

Volume Resistivity

2.3X1015 ohm.m

Water Vapor Transmission r ate

0.08 g/m2/24h

Water Absorption Rate

0.05%

Application Temperature, Max Serve Temperature

-34 ºC to +85 ºC, +85 ºC

Color

White ,Black, yellow or other

Available Roll Size(width * length)

50 to 750mm X 15 to 240 m

Test Data Sheet:

Physical Properties

Test Method

Typical Value

English

Metric

Total thickness

ASTM D 1000

25 mils

0.640mm

Backing thickness

ASTM D 1000

20 mils

0.510mm

Adhesi Adhesive thickness

ASTM D 1000

5 mils

0.130mm

Width

-

9"

228mm

Length

-

800'

244m

Backing color

-

White

White

Tensile strength

ASTM D 1000

41.23 lbs/in

72.2N/cm

Elongation

ASTM D 1000

605%

605%

Adhesion to backing at

ASTM D 1000

45.7 oz/in

5.0N/cm

Cathodic Disbondment

ASTM G 8

0.252 in radius

6.4mm

Dielectric Strength

ASTM D 149

38.0 KV

38.0 KV

Impact resistance

ASTM G 14

50 in-lbs

5.5 Nm

Volume Resistivity

ASTM D 257

2.5×1015 ohm.cm

2.5×1015 ohm.cm

Water Absorptivity

ASTM D 570

0.05%

0.05%

Water Vapor Transmissioin Rate 24 h

ASTM F 1249

0.005 g/100sq in/24h

0.075 g/ m2.24h

Application Temperature

-

-29ºF to 185 ºF

-34 ºC to +85 ºC

Max Service Temperature

-

185ºF

+85 ºC

anticorrosion pipe wrap tape952

Application

1 Rust Removal

Steel Surface needs treating. Its quality shall reach Sa2 or St3 grade as prescribed in GB8923-88 Pre-paint Steel Surface Rust Grade and Rust-removal Grade, and it shall be dust-free.

2 Priming

Primer shall be stirred well before painting. An even film of primer is painted on the steel surface that is rust-removed completely and dust-free. After the primer dries up (one may feel no sticky). The steel pipe can be wrapping with tape (it usually takes 3 to 5 minutes). The primer dosage usually amounts to 80 to 100g / m².

3 Inner Tape (Anti corrosion Tape) & Outer Tape (Protection Tape) Wrapping

The steel pipe that is painted with primer is wrapping with tape by means of suitable devices or tools as per joint needs, and wraps the inner tape and then wraps the outer tape. Tape tensibility can be 10 to 20 N / cm. The overlapped length between beginning and end of an adhesive tape shall be no less than 1/4 circumference of the steel pipe and the total length of adhesive tape shall be no less than 100mm. each film shall be paralleled, and must not be twisted and rumpled.
